Biogeochemical Argo Floats#

Biogeochemical Argo floats are floats equiped with sensors that measure biogeochemical variables. In oceanography, biogeochemical variables are fundamental for topics such as carbon uptake and the biological carbon pump, ocean acidification, oxygen minimum zones (OMZs), phytoplankton communities, respiration, and other living resources, among others. This information can be expanded with Biogeochemical Argo The biogeochemical Argo floats measure the Esential Ocean Variables (EOVs): oxygen concentration, chlorophyll-a concentration, nitrate concentration, pH, backscatter (suspended particles), and irradiance. More information on the EOVs can be found at GOOS: Essential Ocean Variables. Floats have usually 5-6 of these sensors.

IMAGEN TABLA EOVs.

The BGC Argo program started in 2016 and aims to deploy 1000 measuring floats in the ocean. It is the largest source of BGC data in the ocean interior. Some of the applications of the BGC Argo program include monitoring the state of plankton in the ocean using chlorophyll, studying fish species distribution, observing acidification processes, investigating Oxygen Minimum Zones (OMZs), assessing carbon uptake, and contributing to more accurate model predictions and ocean data products.

Data files organized by float and file access#

The biogeochemical floats data can be accesed through the same channels as the core floats data. We will access through the Argo data by Float to use the biogeochemical floats.

The file organization is similar to what is shown in Lesson 3.2 - Accesing Argo data by float. The dac folder contains 11 folders corresponding to each of the DACs. In the particular DAC folders, there is a folder for each of the float processed by the DAC indicated by the WMO number.

If the float is a biogeochemical float, inside the float folder we can find the following files:

6901773_meta.nc
6901773_prof.nc
6901773_Rtraj.nc
6901773_Sprof.nc
6901773_tech.nc
profiles/

The files meta, prof, Rtraj and tech are common with the core Argo data. The file 6901773_Sprof.nc contains the same core variables and the added biogeochemical variables in one single file, corresponding to the synthetic profiles. Inside the Profiles folder, are all the corresponding profiles of this float.

BD6901773_001.nc
D6901773_001.nc
SD6901773_001.nc

The files are named <D/BD/S><FloatWmoID>_<XXX>.nc, with the initial letters indicating the type of profile, the float ID, and XXX as the cycle number. The file D6901773_001.nc belongs to core Argo, and is the Delayed-Mode profile, indicated by the initial D. The file BD6901773_001.nc contains the b-profile for the core and biogeochemical variables, and the file SD6901773_001.nc the synthetic profile for the core and biogeochemical variables. Synthetic profiles have the standarized relevant biogeochemical variables, already adjusted.

The Biogeochemical Argo program also offers an interactive map that displays all the active and inactive biogeochemical floats and gives access to their data.

Float trajectory#

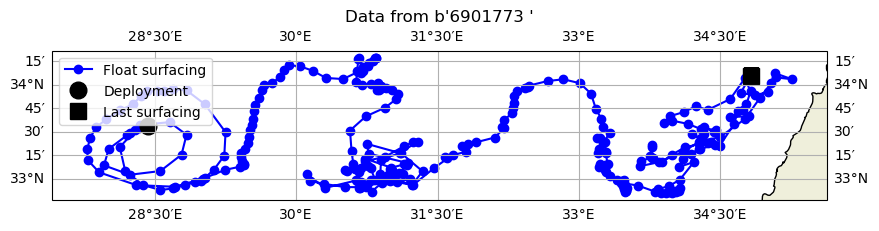

Now, let’s plot the float’s position using cartopy.

lon=ds.LONGITUDE[~np.isnan(ds.LONGITUDE) & ~np.isnan(ds.LATITUDE)]
lat=ds.LATITUDE[~np.isnan(ds.LONGITUDE) & ~np.isnan(ds.LATITUDE)]

fig,ax = plt.subplots(figsize=(10,10),subplot_kw={'projection': ccrs.PlateCarree()})
ax.plot(lon,lat,'-bo',label='Float surfacing')
ax.plot(lon[0],lat[0],'ok',markersize=12,label='Deployment')
ax.plot(lon[-1],lat[-1],'sk',markersize=12,label='Last surfacing')

ax.add_feature(cartopy.feature.LAND.with_scale('10m'))
ax.add_feature(cartopy.feature.COASTLINE.with_scale('10m'), edgecolor='black')

ax.set_title(f"Data from {ds.PLATFORM_NUMBER.values[0]}")
ax.legend()
ax.gridlines(draw_labels=True, dms=True, x_inline=False, y_inline=False);

../../_images/288f4fe48252aa33dc196dba8d922cc4c78f19cf8bb51fc0ba07e4a280146ca0.png

Visualization of the biogeochemical data#

For the vertical sections we will interpolate the data in depth first, using the same method as Lesson 3.2 - Accesing Argo data by float - Accesing all profiles at once. Biogeochemical proccessed data has a higher amount of Not A Number (NaN) data points, so we need to take the NaN values into account to obtain a good interpolation.

First, we will create the variables that will be interpolated.

prei=np.arange(5,1030,5)

juld=ds.JULD.values
pres=ds.PRES_ADJUSTED.values

doxy=ds.DOXY.values
doxya=ds.DOXY_ADJUSTED.values
chla = ds.CHLA_ADJUSTED.values
nitr = ds.NITRATE.values
nitra = ds.NITRATE_ADJUSTED.values
bbp = ds.BBP700_ADJUSTED.values
cdom = ds.CDOM_ADJUSTED.values
downpar = ds.DOWNWELLING_PAR_ADJUSTED.values
irr380 = ds.DOWN_IRRADIANCE380_ADJUSTED.values
irr412 = ds.DOWN_IRRADIANCE412_ADJUSTED.values
irr490 = ds.DOWN_IRRADIANCE490_ADJUSTED.values

The interpolated vectors must be created previously and filled with NaN values.

doxyi= np.zeros((juld.shape[0],prei.shape[0]))
doxyi.fill(np.nan)

doxyai= np.zeros((juld.shape[0],prei.shape[0]))
doxyai.fill(np.nan)

chlai= np.zeros((juld.shape[0],prei.shape[0]))
chlai.fill(np.nan)

nitri= np.zeros((juld.shape[0],prei.shape[0]))
nitri.fill(np.nan)

nitrai = np.zeros((juld.shape[0],prei.shape[0]))
nitrai.fill(np.nan)

bbpi= np.zeros((juld.shape[0],prei.shape[0]))
bbpi.fill(np.nan)

cdomi= np.zeros((juld.shape[0],prei.shape[0]))
cdomi.fill(np.nan)

downpari= np.zeros((juld.shape[0],prei.shape[0]))
downpari.fill(np.nan)

irr380i= np.zeros((juld.shape[0],prei.shape[0]))
irr380i.fill(np.nan)

irr412i= np.zeros((juld.shape[0],prei.shape[0]))
irr412i.fill(np.nan)

irr490i= np.zeros((juld.shape[0],prei.shape[0]))
irr490i.fill(np.nan)

For the interpolation, this code will not interpolate if the number of NaNs is too high and will create false data or propagate.

vars = [doxy, doxya, chla, nitr, bbp, cdom, downpar, irr380, irr412, irr490]
outs   = [doxyi, doxyai, chlai, nitri, bbpi, cdomi, downpari, irr380i, irr412i, irr490i]

# Interpolation loop
for var, var_i in zip(vars, outs):
    for ip in range(pres.shape[0]):
        # Mask to filter the valid profiles
        mask = ~np.isnan(pres[ip, :]) & ~np.isnan(var[ip, :])

        if np.sum(mask) < 2:
            continue

        pres_valid = pres[ip, mask]
        var_valid  = var[ip, mask]

        order = np.argsort(pres_valid)

        # Interpolation
        var_i[ip, :] = np.interp(prei, pres_valid[order], var_valid[order])

Oxygen, nitrate and chlorophyll figures

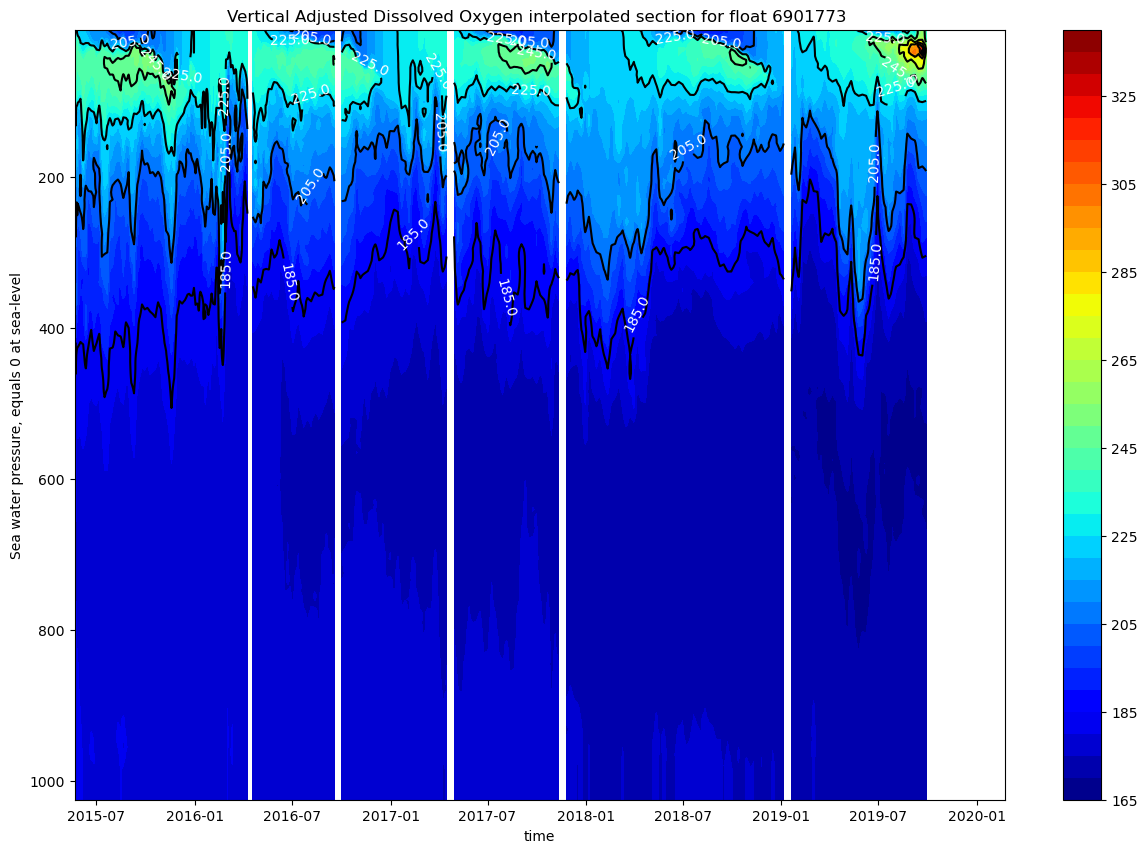

fig, ax = plt.subplots(figsize=(15,10))

cs=ax.contourf(juld,prei,doxyai.transpose(),40, cmap = 'jet') #, vmin = 140, vmax = 260)
cs2=ax.contour(juld,prei,doxyai.transpose(),colors=('k'), levels=cs.levels[::4])

ax.invert_yaxis()
ax.clabel(cs2, fmt='%2.1f', colors='w', fontsize=10)

ax.set_title(f"Vertical Adjusted Dissolved Oxygen interpolated section for float {ds.PLATFORM_NUMBER[0].astype(str).values}")
ax.set_xlabel(f"{ds.JULD.standard_name}")
ax.set_ylabel(f"{ds.PRES.long_name}")

cbar=fig.colorbar(cs,ax=ax)

../../_images/31d6abd3536db42b8b2114e14bb6a5b8f63ccf18f7ab3e50457cce839f56b155.png

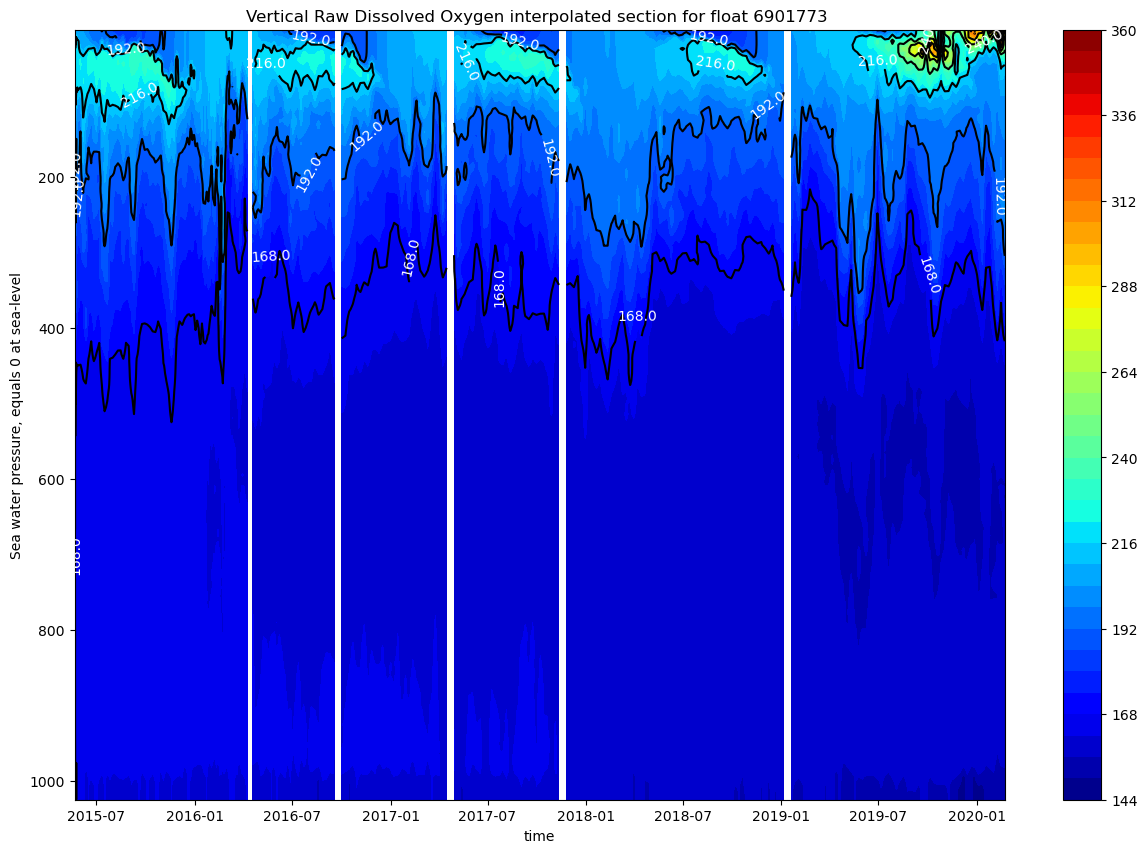

fig, ax = plt.subplots(figsize=(15,10))

cs=ax.contourf(juld,prei,doxyi.transpose(),40, cmap = 'jet') #, vmin = 140, vmax = 260)
cs2=ax.contour(juld,prei,doxyi.transpose(),colors=('k'), levels=cs.levels[::4])

ax.invert_yaxis()
ax.clabel(cs2, fmt='%2.1f', colors='w', fontsize=10)

ax.set_title(f"Vertical Raw Dissolved Oxygen interpolated section for float {ds.PLATFORM_NUMBER[0].astype(str).values}")
ax.set_xlabel(f"{ds.JULD.standard_name}")
ax.set_ylabel(f"{ds.PRES.long_name}")

cbar=fig.colorbar(cs,ax=ax)

../../_images/b9197efe25d68ea2909724e20c459062a1b6a34ab57282be587d23b798df56f0.png

The vertical oxygen profile shows strong seasonal stratification with oxygen-rich surface waters up to 100m (>200 μmol/kg), a prominent oxygen minimum zone at 200-400m depth (~165-185 μmol/kg), and relatively stable deep-water oxygen levels (~185-195 μmol/kg) from 2015-2020. There is also a strong seasonal cycle in the upper 200m.

DIFERENCIAS ENTRE AJUSTADO Y NO

If we watch this data with a different plot style (scatter), without the interpolation, we can observe that the columns with no data disappear. When the interpolation is done, the profiles that have a high number of NaN (Not a Number) are discarded and left blank.

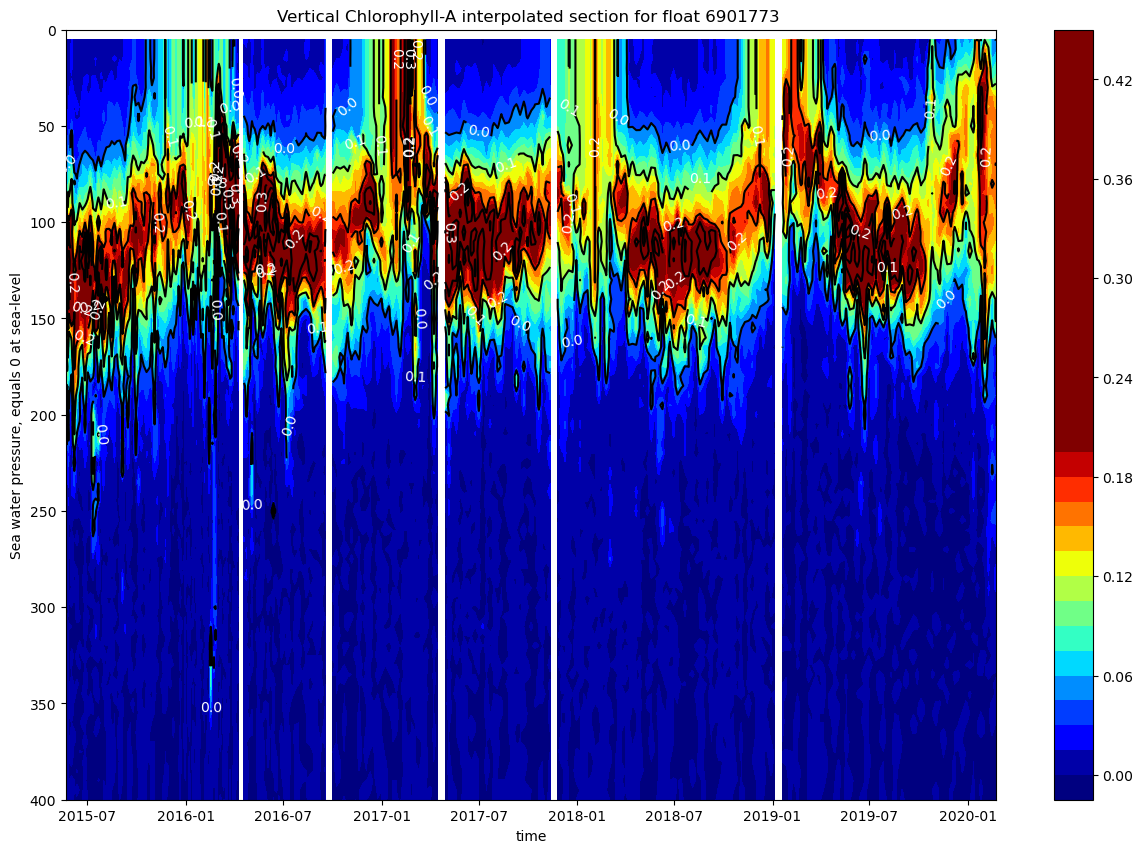

fig, ax = plt.subplots(figsize=(15,10))

cs=ax.contourf(juld,prei,chlai.transpose(),40, cmap = 'jet', vmin = 0, vmax = 0.2)
cs2=ax.contour(juld,prei,chlai.transpose(),colors=('k'), levels=cs.levels[::4])

ax.invert_yaxis()
ax.clabel(cs2, fmt='%2.1f', colors='w', fontsize=10)
ax.set_ylim(400, 0)

ax.set_title(f"Vertical Chlorophyll-A interpolated section for float {ds.PLATFORM_NUMBER[0].astype(str).values}")
ax.set_xlabel(f"{ds.JULD.standard_name}")
ax.set_ylabel(f"{ds.PRES.long_name}")

cbar=fig.colorbar(cs,ax=ax)

../../_images/e7c0eb3a9c49ae814edb54612947573497dc54de57c9793c95f3449998a403d0.png

The chlorophyll is concentrated in the upper 200m with strong seasonal spring blooms (0.2-0.42 mg/m³) in late winter/spring, a persistent deep chlorophyll maximum (DCM) at 50-150m depth, and near-zero values below 200m, characteristic of the nutrient-limited Mediterranean Sea.

fig, ax = plt.subplots(figsize=(15,10))

cs=ax.contourf(juld,prei,nitri.transpose(),40, cmap = 'jet', vmin = 0, vmax = 20)
cs2=ax.contour(juld,prei,nitri.transpose(),colors=('k'), levels=cs.levels[::4])

ax.invert_yaxis()
ax.clabel(cs2, fmt='%2.1f', colors='w', fontsize=10)

ax.set_title(f"Vertical Nitrate interpolated section for float {ds.PLATFORM_NUMBER[0].astype(str).values}")
ax.set_xlabel(f"{ds.JULD.standard_name}")
ax.set_ylabel(f"{ds.PRES.long_name}")

cbar=fig.colorbar(cs,ax=ax)

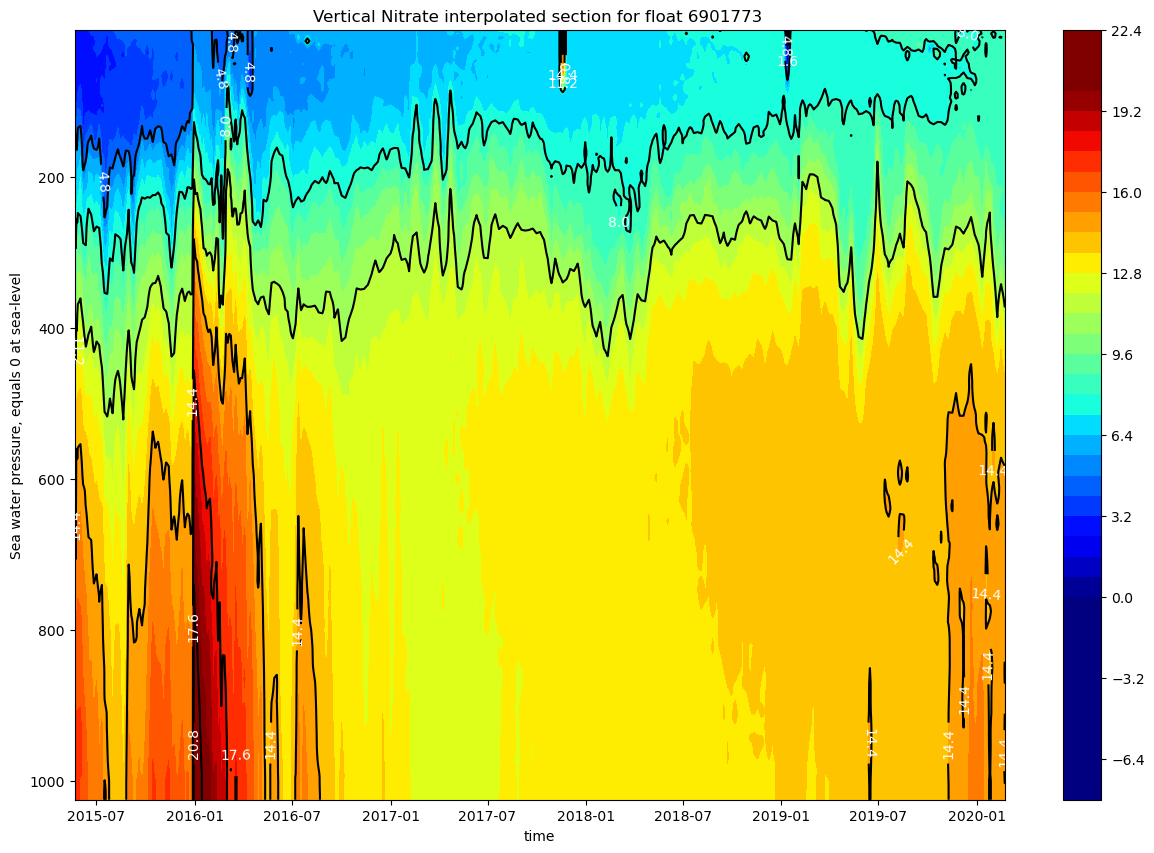

../../_images/683ffa28c7e15de3216b0826d872653f21ad521902bd5eb1425dcd7915988245.png

The nitrate concentration is low on the upper layer (up to 200m), and increases with depth, forming a permanent nutricline. The upper 300m show a strong seasonal variability.

EXPLICAR EN DETALLE: NITRATO POR DESCOMPOSICIÓN.

Suspended particles

ds.BBP700_ADJUSTED.plot()

<matplotlib.collections.QuadMesh at 0x18b8f1e50>

../../_images/b6f4ab2b696a9480d176fc420e55c4843de6c5f1fd88be8922d534e4b2dd5cfc.png

fig, ax = plt.subplots(figsize=(15,10))

cs=ax.contourf(juld,prei,bbpi.transpose(),40, cmap = 'jet')#, vmin = 0.0002, vmax = 0.001)
cs2=ax.contour(juld,prei,bbpi.transpose(),colors=('k'), levels=cs.levels[::4])

ax.invert_yaxis()
ax.clabel(cs2, fmt='%2.1f', colors='w', fontsize=10)

ax.set_title(f"Vertical Backscattering interpolated section for float {ds.PLATFORM_NUMBER[0].astype(str).values}")
ax.set_xlabel(f"{ds.JULD.standard_name}")
ax.set_ylabel(f"{ds.PRES.long_name}")

cbar=fig.colorbar(cs,ax=ax)

../../_images/e6c94a273f510fb8d8a51d2ee2e822e3f823cc7ae8e65cefbfd085d05c36c624.png

fig, ax = plt.subplots(figsize=(15,10))

cs=ax.contourf(juld,prei,cdomi.transpose(),40, cmap = 'jet', vmin = 0, vmax = 2.5)
cs2=ax.contour(juld,prei,cdomi.transpose(),colors=('k'), levels=cs.levels[::4])

ax.invert_yaxis()
ax.clabel(cs2, fmt='%2.1f', colors='w', fontsize=10)

ax.set_title(f"Vertical Coloured Dissolved Organic Matter interpolated section for float {ds.PLATFORM_NUMBER[0].astype(str).values}")
ax.set_xlabel(f"{ds.JULD.standard_name}")
ax.set_ylabel(f"{ds.PRES.long_name}")

cbar=fig.colorbar(cs,ax=ax)

../../_images/90312deed2ad8a0ee413fd052bd160d1c5d12edc36e80afcfe1d45a2f99db63a.png

The backscattering shows a high concentration of suspended particles in the upper 150m, indicating phytoplankton mass and detritus, and possible dust episodic inputs. In the deeper layers there is a lower backscattering value, meaning a particle attenuation, due to sinking, remineralization, and aggregation. There are some episodic high backscattering events, some penetrating deeper.

The CDOM results show a higher value below 200-300m, due to biological consumption and photobleaching on the surface. This is typical for oligotrophic basins. Both parameters show a clear seasonal cycle in the upper ocean, althoug it is stronger in the backscattering result.

Deberían dar esto (lo que me salia en el scatter)

Irradiance

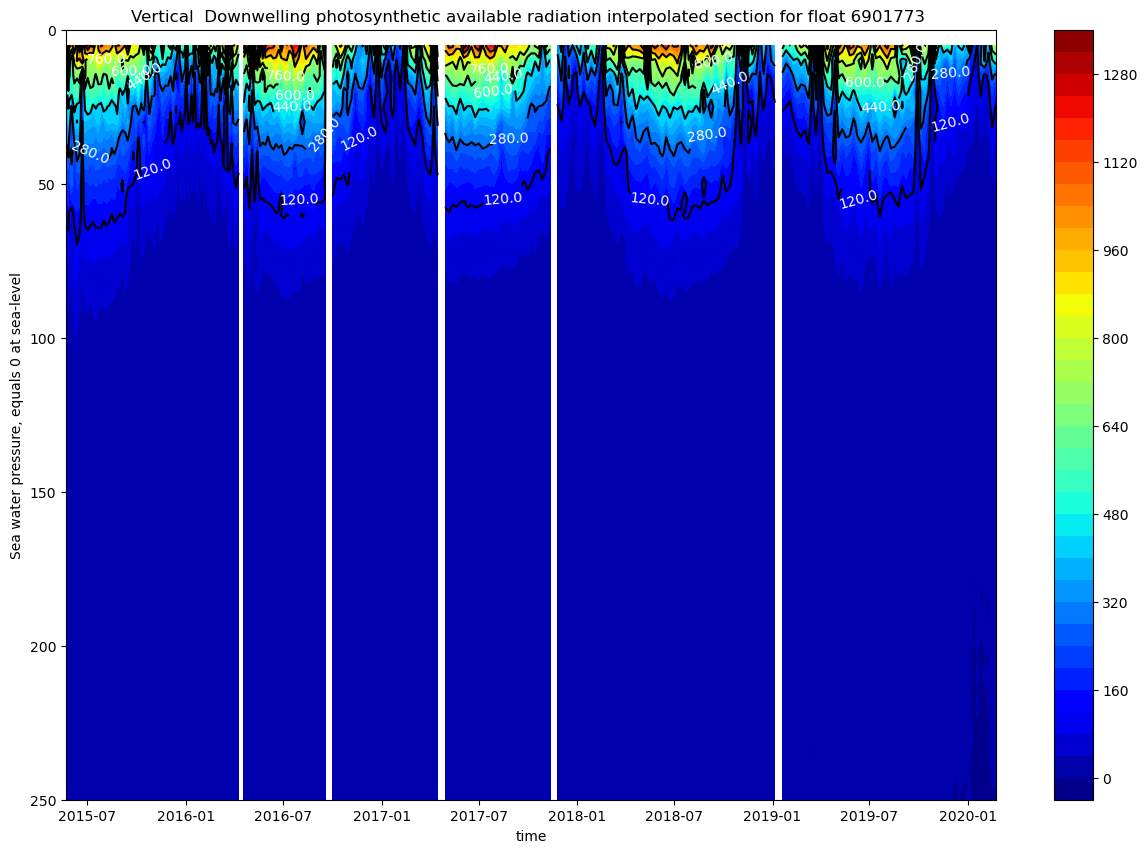

fig, ax = plt.subplots(figsize=(15,10))

cs=ax.contourf(juld,prei,downpari.transpose(),40, cmap = 'jet')#, vmin = 0, vmax = 600)
cs2=ax.contour(juld,prei,downpari.transpose(),colors=('k'), levels=cs.levels[::4])

ax.invert_yaxis()
ax.clabel(cs2, fmt='%2.1f', colors='w', fontsize=10)
ax.set_ylim(250, 0)

ax.set_title(f"Vertical  Downwelling photosynthetic available radiation interpolated section for float {ds.PLATFORM_NUMBER[0].astype(str).values}")
ax.set_xlabel(f"{ds.JULD.standard_name}")
ax.set_ylabel(f"{ds.PRES.long_name}")

cbar=fig.colorbar(cs,ax=ax)

../../_images/2308b83655a0a60f9e8957890ec1df0b9a079f6275bb6118306c28ce81d3a980.png

fig, ax = plt.subplots(figsize=(15,10))

cs=ax.contourf(juld,prei,irr490i.transpose(),40, cmap = 'jet')#, vmin = 0, vmax = 1.8)

cs2=ax.contour(juld,prei,irr490i.transpose(),colors=('k'), levels=cs.levels[::4])

ax.invert_yaxis()
ax.clabel(cs2, fmt='%2.1f', colors='w', fontsize=10)
ax.set_ylim(250, 0)

ax.set_title(f"Vertical Downwelling irradiance at 490 nanometers interpolated section for float {ds.PLATFORM_NUMBER[0].astype(str).values}")
ax.set_xlabel(f"{ds.JULD.standard_name}")
ax.set_ylabel(f"{ds.PRES.long_name}")

cbar=fig.colorbar(cs,ax=ax)

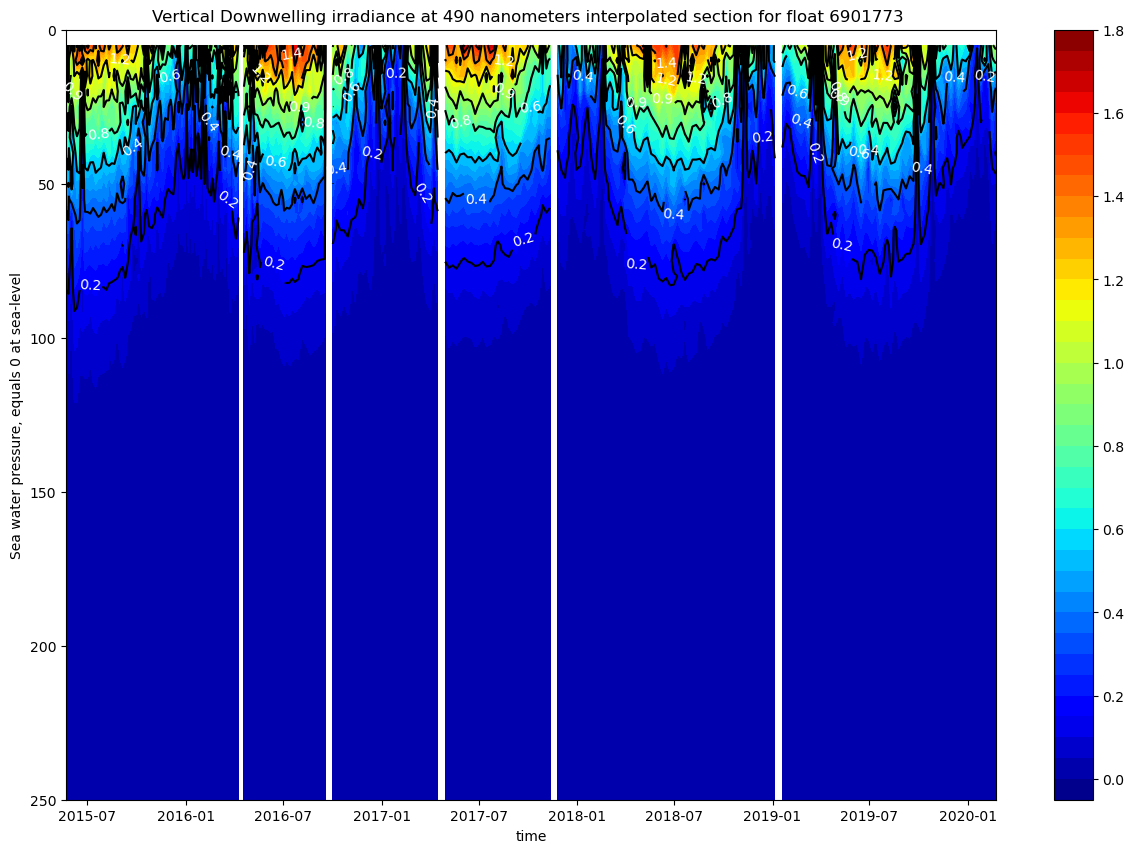

../../_images/e12f8e7169114efef546b68b8fa9e8c6a1f9cf0fb238d515cb005db22a97e615.png

The figures show a rapid attenuation of the irradiance with depth. Light is confined to the upper 50-80m, corresponding to a relatively shallow euphotic zone. There is a clear seasonal cycle.

These plots only have data up to 250m. We only represented the downwelling irradiance of 490nm and PAR, since the information of all the plots is similar.
